LDW Electromagnetic Water Meter

Category:Engine Machinery
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China LDW Electromagnetic Water Meter Introduction:

Specifications

Brand Name

HS Code

Unit

PCE(Pieces)

Customed Made

MOQ

Delivery Period

5-7 days

Description

LDW Electromagnetic Water Meter

Typical application:

monitoring and metering of water volume, such as leakage monitoring of secondary water supply pipe

network and pipeline.

Product Features:

■The instrument is easy to install - The instrument can be buried underground or installed in a well. The IP 68 (NEMA 6P)

design makes the meter unaffected by where it is installed in the pipe and does not require a filter.

■Low pressure loss - Straight-through measuring tube ensures minimal pressure loss, even at the highest flow rates. It can

reduce the pressure of the whole network system, which helps to prevent the pumping station from bursting and leaking

due to excessive pressure.

■Zero Maintenance - The product is designed with no moving parts and its battery life is up to 6 years.

■Bi-directional measurement - One meter can realize Bi-directional flow measurement.

■Smart Meter - One meter can perform leak detection, data logger function and error self-test.

Technical Parameters

Sensor
Connection Method	LDW electromagnetic water meter
Measurement Parameters	Flange (GB/T9119-2010)
Diameter (mm)	Instantaneous flow, cumulative flow, pressure (optional)
Pressure Rating（MPa）	DN50-DN300
Lining Material	l.0MPa to 4.0MPa (by diameter)
Conductivity	Rubber
Electrode	>20ps/cm
Protection Grade	Stainless steel 316L
Connection Method	IP68
Temperature	Medium temperature：0°C~+70°C Ambient temperature：-25°C~+70°C Storage temperature：-40°C~+70°C
Housing Material	Stainless steel

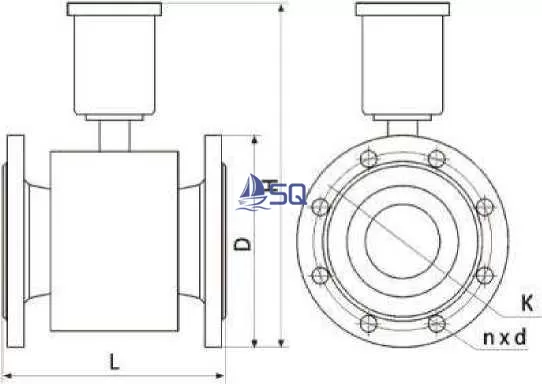

Dimensions of Electromagnetic Water Meter

Calibre	D(mm)	K(mm)	n-d	L(mm)	H(mm)
DN50	165	125	4-18	200	390
DN65	185	145	8-18	200	405
DN80	200	160	8-18	200	420
DN100	220	180	8-18	250	440
DN125	250	210	8-18	250	470
DN150	285	240	8-22	300	495
DN200	340	295	12-22	350	555
DN250	405	355	12-26	400	620
DN300	460	410	16-26	500	665
