FABRIC CARCASS CONVEYOR BELT

Categories

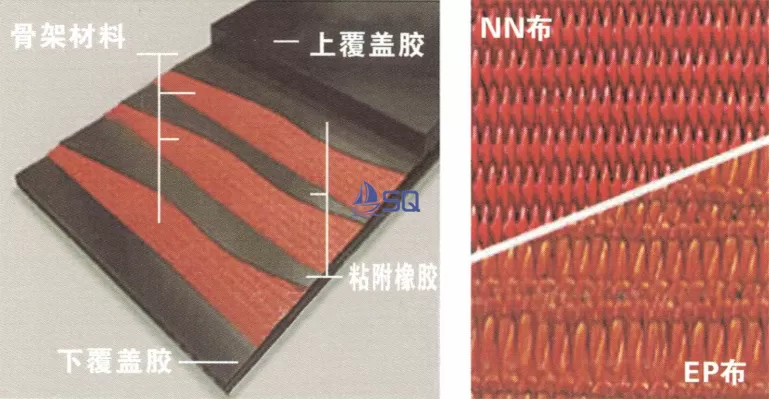

Fabric carcass conveyor belt have different kind ofmaterials: cotton(CC),nylon (NN),polyester/polyester (PP) and polyester/nylon (EP).

Features

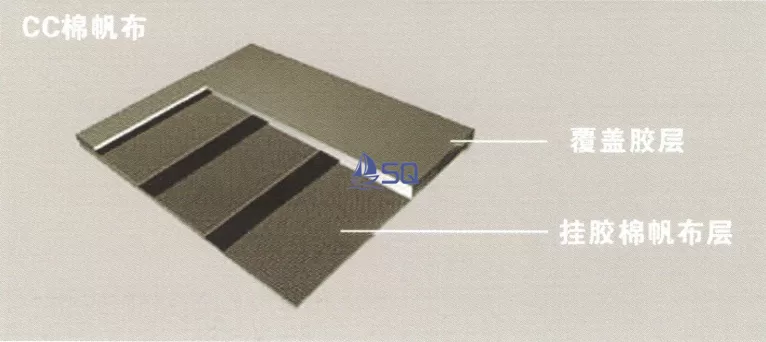

Cotton (CC) Conveyor Belt: The traditional type of conveyor belt, suitablefor medium and short-distance transportation of materials.Nylon (NN)conveyor belt: light weight, high strength, impact resistant,very flexible, good trough ability, suitable for medium and long-distancehigh loading, high-speed delivery of materials.Polyester (EP)conveyor belt: high strength in proportion to weight, highresistance to impact, great flexibility, excellent trough and thermal stability.suitable for medium and long-distance high loading, high-speed delivery ofmaterials.

Fabric carcass conveyor belt specification

Belt Type	Fabric type	Fabric tensile (N/mm)	Fabric thickness mm	Cover rubber		Plies	Width mm	Length M/Roll
				Top	Bottom
TC Belt	Polyester/Cotton 4×8	56	1.26	3.0 4.5 5.0 6.0 8.0	1.5	3--12	300-2000	20-300
NN Belt	NN100	100	0.5			2--10	300-2000	20-300
	NN150	150	0.65
	NN200	200	0.85
	NN250	250	1.1
	NN300	300	1.3
	NN400	400	1.35
	NN500	500	1.4
	NN630	630	1.56
EP Belt	EP100	100	0.6		3.0	2--8	300-2000	20-300
	EP150	150	0.7
	EP200	200	0.85
	EP250	250	1.07
	EP300	300	1.2
	EP350	350	1.26
	EP400	400	1.4
	EP500	500	1.5
	EP600	600	1.64

Variety

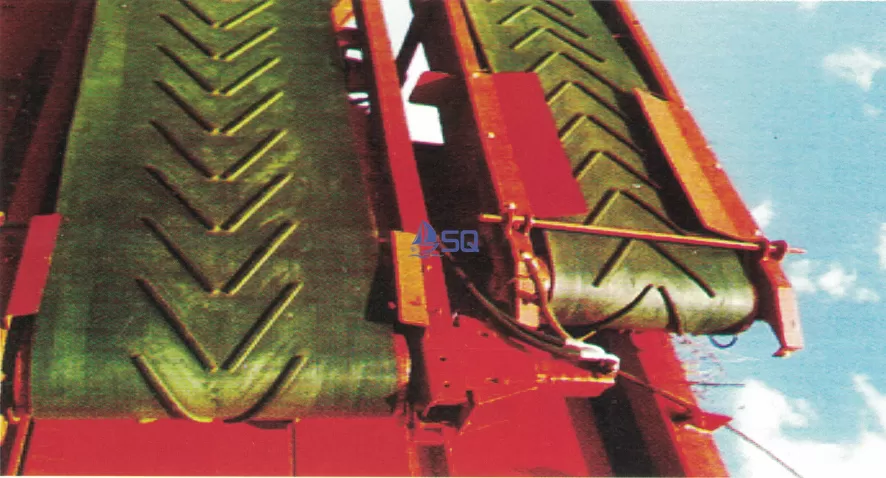

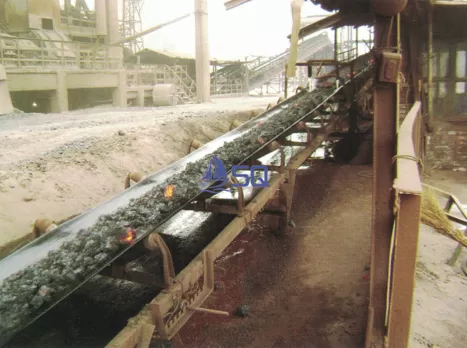

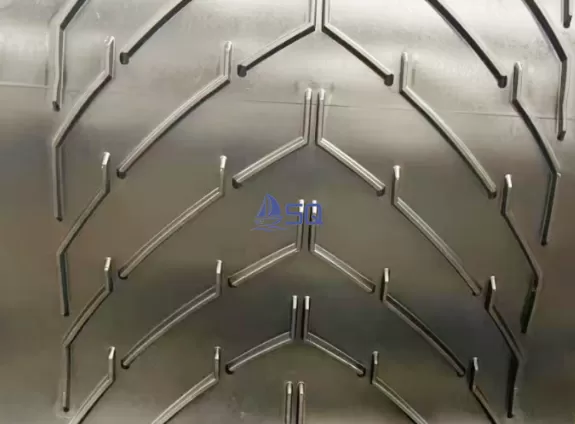

According to different working condition we provide varies belt as following: Abrasive resistant; Heatresistant; Flame resistant; Cold resistant; Oil resistant; Acid resistant and Chevron conveyor belt.
