HEAT-RESISTANT CONVEYOR BELT

Features

T1 ~T4- different levels of heat,

T1-resistant is temperature not more than 100 ℃

T2-resistant is temperature not more than 125 ℃;

T3 resistance is temperature not more than 150 ℃:

T4 resistance is temperature not more than 175 ℃

Resistant temperature 180℃~200℃

Apply

For the material temperature exceeds 60℃ occasions, such as metallurgy, building materials, coke, cementchemical production and pipeline transport of high temperature massive, granular, powder and hightemperature solid materials etc.

Quality Feature

Belt Type	Code	Surface temperature	Material temperature		Features	Apply
			Constantly	Suddenly
Low heat	T1	60-100℃	70-120℃	130℃	Hardened type, with cracking phenomenon should not use more than 70 ℃ powder.	Conveyor lines that need to be wear-resistant such as coke, sintered finished products, pellets, dry lime, etc.
Mediun heat	T2	60-125℃	70-140℃	150℃	Non-hardenable, medium wear resistant.	Generally wear-resistant, can convey burnt cement products and return ore, clinker and other less viscous materials
Hight heat	T3	60-150℃	70-170℃	180℃
Extra high heat	T4	60-175℃	70-180℃	250℃

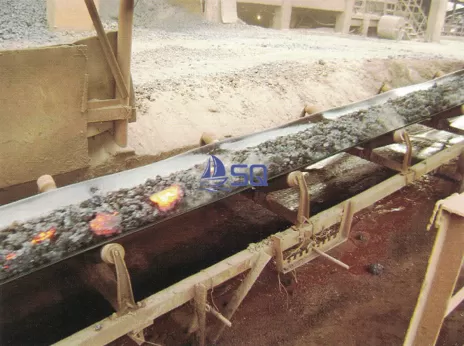

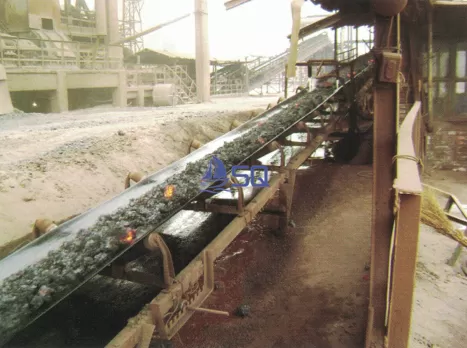

scorch		60-180℃	70-200℃	300℃	Resistant to high temperature burns, used for red-hot material conveying	Sinter Ore Conveying in Steel Mills

Cover rubber specification Standard：GB/T20021-2005/HG2297-92

Ageing test		Type
		T1	T2	T3	T4
		Range of Variation
Hardness	Change between post-ageing and pre-ageing(IRHD)	+20	+20	±20	±20
	Maximum value after ageing	85	85	85	85
Elongation	Rate of change of performance%	-25	-30	-40	-40
	Min value Mpa	12	10	5	5
Tensile elongation	Rate of change after ageing%	-50	-50	-55	-55
	Min value	200	200	180	180

Selection of heat-resistant conveyor belts

(1) the temperature of the material conveyed and the surface temperature of the tape according to the composition of the material, the nature of the surface structure and shape and particle size changes, such as when the temperature of the bulk material is 150 ℃, and the tape area is relatively small, the surface temperature of the tape can be maintained at 60 ~ 80 ℃; However, when the conveyor of water mud powder, the temperature of the material and the surface temperature of the tape the difference between very little; (2) tropical tape life by the surface temperature of the tape is quite serious.
(2)The life of heat-resistant tape is seriously affected by the surface temperature of the tape, therefore, when selecting the tape, the surface temperature of the tape is extremely important, as well as the ambient temperature, whether the tape can be sufficiently cooled when it is returned; the speed of the tape and the distance from the centre, etc. are all noteworthy;
(3)A thicker cover rubber is to ensure that the tape has a longer life of the important conditions, we suggest that the thickness of fabric-core heat-resistant tape cover rubber: the upper cover is 6~8mm, and the lower cover is 2~4mm.

Points of use

(1) The surface temperature of the entire belt should be continuously and uninterruptedly measured, recorded and monitored, and unnecessary temperature increases must be avoided.

(2) Compulsory cooling of the material and the belt (preferably with water over the entire length) is to be carried out.

(3) Keep the conveyed material evenly distributed according to the belt width and not too concentrated; and

(4) Prevent the presence of oil (trace oil in the cooling water) on the belt damage more than the heat itself.

(5) Take measures to remove the hot material from the belt containing the hot material once it has stopped running.
