Product process: The product base belt and pattern of the whole vulcanisation, a molding.

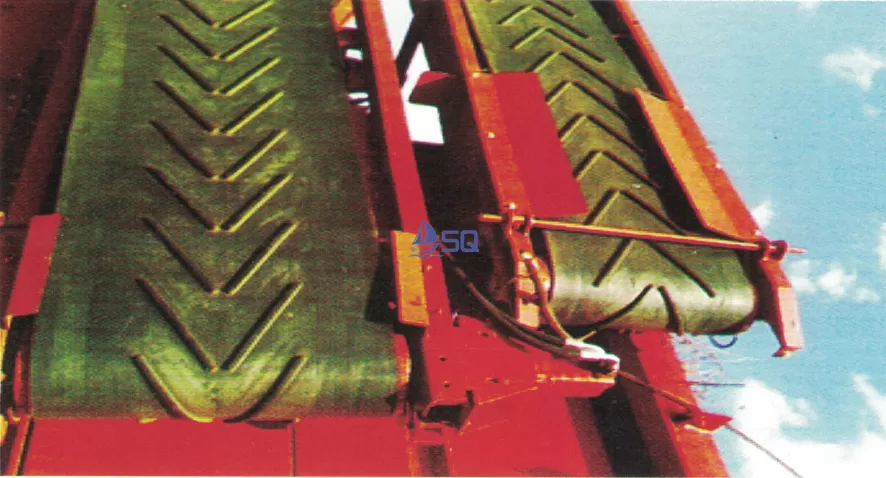

Usage Scenario: It is suitable for conveying powder, granule and small piece of materials with inclination angle ≤40 degrees, and also can convey bagged materials.
The shape or depth of the Chevron pattern are subjecting to difference of material and inclination of the conveyor.
For conveying coal, crushed stone, gravel, grain and soft-bag package size less than 50mm, max. Inclination up to 40 °

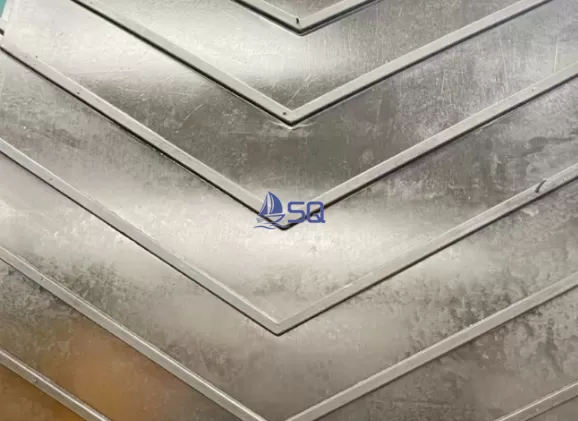

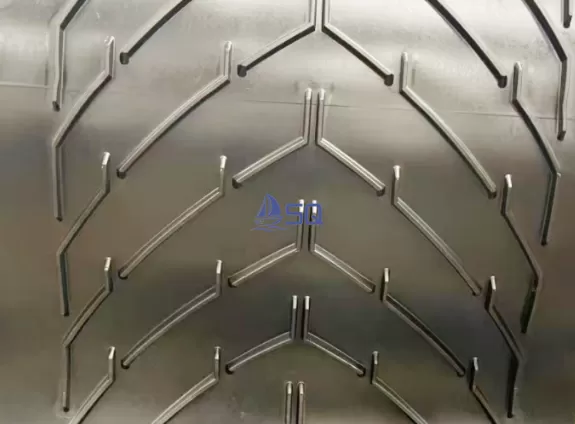

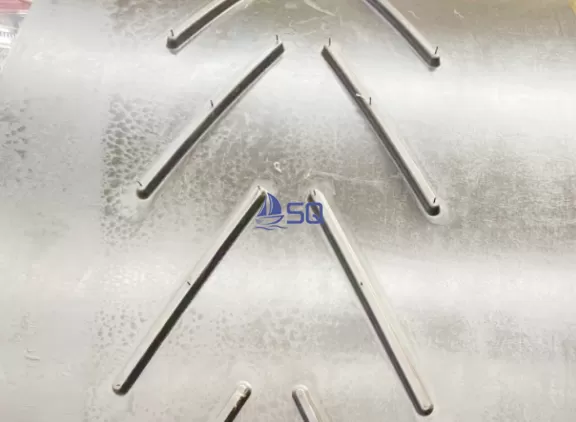

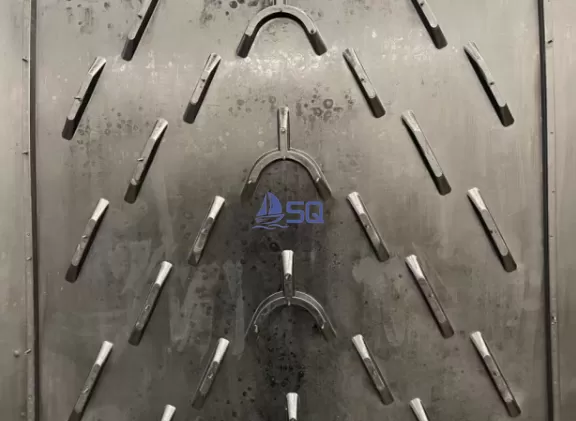

"1" -shape, "Dot" -type, "V" -shape.
5, 10, 15, 20 (mm)
| Type |
Width (mm) |
Piles |
Tensile (N/mm) |
Cover rubber | Carcass | |
| Top | Bottom | |||||
| 人Shape | 400 | 2~5 | 120~300 | 3.0~4.5 | 1.5 | CC, NN, EP |
| 600 | ||||||
| 800 | ||||||
| Dot type | 400 | 3.0 | 1.5 | CC, NN, EP | ||
| 600 | ||||||
| 800 | ||||||
| V Shape | 400 | 3.0~4.5 | 1.5 | CC, NN, EP | ||
| 600 | ||||||
| 800 | ||||||
