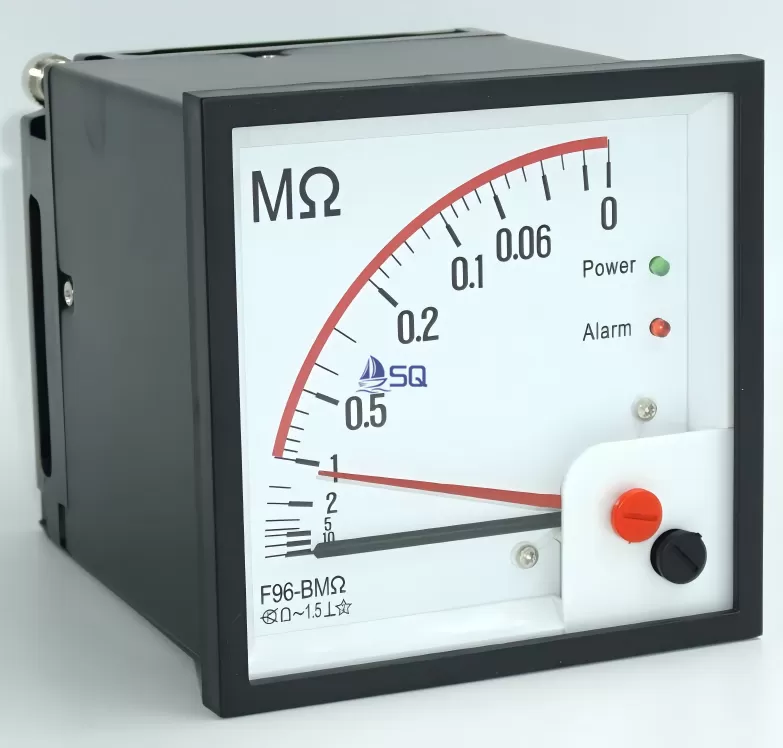

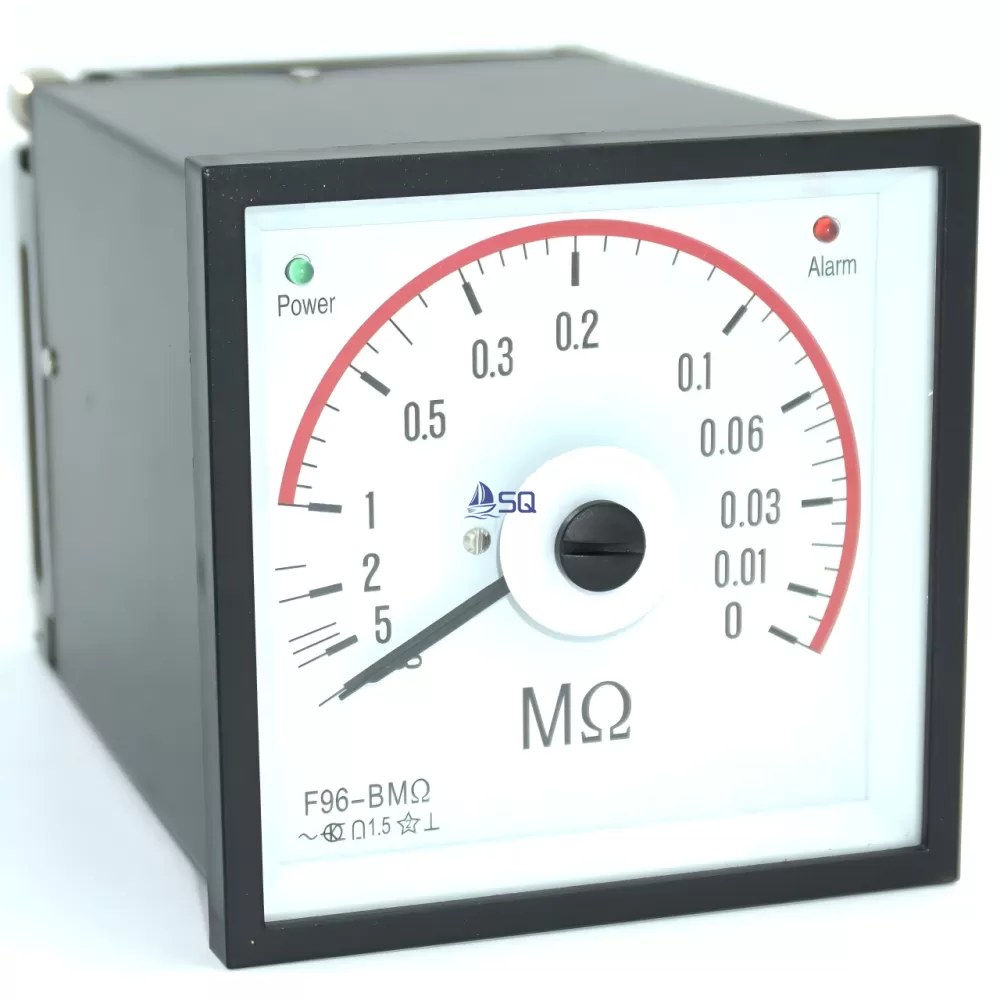

China F96-BMΩ Ac insulation meter Introduction:
Specifications
Description
Type: F96-BMΩ
Measurement of neutral ungrounded (IT) systems
Monitoring the insulation at the AC network system below 750V.
To output alarm signal will generate if the resistance lows then the set value.
angle : 90° /240°
Accuracy of indication: ⑩（ Or arc length: ±1.5%）.
Alarm setting value: 0.01MΩ、0.03MΩ、0.06MΩ、0.1MΩ、0.2MΩ、0.5MΩ、1.0MΩ、1.5MΩ、2MΩ、5MΩ。
Ambient temperature range: -25℃ to +55℃。
protection: IP44。
Vibration resistance: 2-100HZ≤0.7g。
Dielectric test: AC2.6KV, 50HZ, 1min。
Contact rating: AC250V, 3A; DC28V, 3A。
Power consumption: ≤3VA。
Aux.power: AC100/110V, AC220/240V, AC380/440V; ±20%。
Panel embedded, vertical (⊥) installation.
