| Item | Specification | Item | Specification |
|---|---|---|---|
| Model | TX-HA-01(L) | Vertical Beam Angle | 3° ~ 7° |
| Power Supply | AC220V, DC180V | Horizontal Beam Angle | 90° |
| Power Frequency | 50Hz ~ 60Hz | Overall Dimensions |
570mm×190mm×266mm (mounting feet externally installed)
|
| Average Power Consumption | ≤30W | Mounting Dimensions |
550mm×90mm×M10 (mounting feet externally installed)
|
| Operating Mode | 40 Flashes/Min | Ambient Temperature | -40℃ ~ +55℃ |
| Emission Color | White | Weight | 11.6kg (bracket not included) |
| Light Source | LED | Wind Resistance | 240km/h |
| Housing Material | Aviation-Grade Aluminum Alloy | Lens Material | Optical Glass |
| Energy Efficiency | ≥95% | Mounting Structure | Adaptive Vertical or Side Mounting |
| Light Source Lifespan | ≥200,000 Hours | Protection Class | IP65 |
| Surge Protection Rating | 5kA | Relative Humidity | 0% ~ 95% |
| Rain Resistance | Suitable for exposure to rain from any wind direction | Vibration Resistance | 10~500Hz, 2G, 10min/cycle, 60min for each X/Y/Z axis |
| Salt Spray Resistance | Suitable for exposure to salt spray environment | Insulation Performance | Between input terminal and housing: 1.414kVdc, 10S no breakdown |
| Leakage Current | ＜10μA | Mean Time Between Failures (MTBF) | ≥200,000 Hours, MIL-HDBK-217F (25℃) |
| Electric Shock Protection | Yes | Anti-Drop Device | Yes |
| Effective Luminous Intensity | Daytime: 200,000cd, Dawn/Dusk: 20,000cd, Night: 2,000cd | - | - |
| Light Control Modes | Night (<50Lx), Dawn (50Lx-500Lx), Daytime (>500Lx), Dusk (50Lx-500Lx) | - | - |

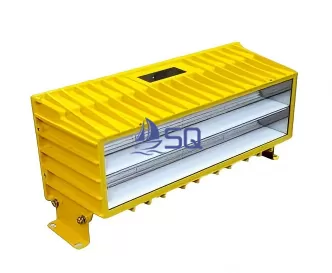

Welcome to consult China High-Intensity Aviation Obstruction Light TX-HA-01(L) suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
