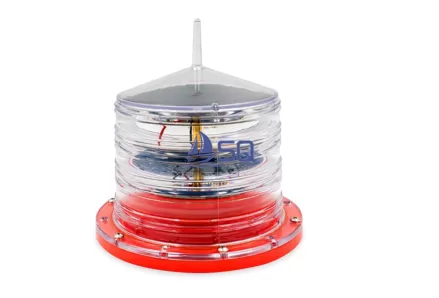

Solar Navigation Beacon Light GS-LS-E
  • Solar Navigation Beacon Light GS-LS-E

Solar Navigation Beacon Light GS-LS-E

  • Category:Ship Equipment
  • Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
  • FOB Price:Get Latest Price Now
  • Quality Guarantee:12 Months unless specified otherwise
  • Place of Origin:China
Get a factory quote now, we can supply according to your requirement.

China Solar Navigation Beacon Light GS-LS-E Introduction:

Specifications

    Brand Name
  • SQ
    HS Code
    Unit
    Customed Made
  • Yes
    MOQ
  • 1
    Delivery Period
  • 30 days

Description

Application Fields

Maritime channels, rivers, lakes, aquaculture areas,
buildings, bridges, iron towers, communication towers, chimneys,
airport runways, helicopter pads, traffic barriers,
tower cranes.

Functional Features

  • Built-in aerospace-grade high-efficiency solar photovoltaic panel, with automatic light control function, which automatically turns on in rainy days and at night.
  • Integrated waterproof design, can be immersed in seawater for use, with protection class up to IP68.
  • Complies with IALA (International Association of Marine Aids to Navigation and Lighthouse Authorities) and Chinese navigation mark optical design standards.
  • Made of marine-grade special materials, specially suitable for harsh and highly corrosive environments such as seas, rivers, chemical plants, airports, etc., with a service life of up to 30 years.

Additional Notes

Multiple colors available (Red, Yellow, White, Green, Blue)

Parameter

Item Specification Item Specification
Model GS-LS/E Light Source Lifespan ≥200,000 Hours
Power Supply Class A High-Efficiency Solar Panel Optional Emission Color Red, Yellow, White, Green, Blue
Battery Capacity 3.2V 4AH Battery Type Class A LiFePO₄ (Lithium Iron Phosphate) Battery
Battery Lifespan 5 Years Solar Panel Voltage 5.5V
Solar Panel Power 2W Solar Panel Lifespan >20 Years
Power Consumption ≤2W Vertical Beam Angle >8°
Visible Range 1-4 Nautical Miles Horizontal Beam Angle 360°
LED Quantity 20 PCS Overall Dimensions 186mm (D) × 190mm (H)
Light Source LED Mounting Dimensions Φ170mm × M6
Storage Temperature -50℃ ~ +65℃ Wind Resistance 80 m/s
Operating Temperature -40℃ ~ +55℃ Operating Mode 20 Flashes/Min (Default)
Daylight Switch Illuminance Threshold 300LUX ± 100LUX Continuous Illumination Time >15 Days (Based on 12 Hours Operation per Day)
Weight 1.0kg Protection Class IP68
