Helideck Inset Perimeter Ligh

Category:Engine Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Get a factory quote now, we can supply according to your requirement.

China Helideck Inset Perimeter Ligh Introduction:

Specifications

Brand Name

Shanqing

HS Code

Unit

Customed Made

MOQ

Delivery Period

30 days

Description

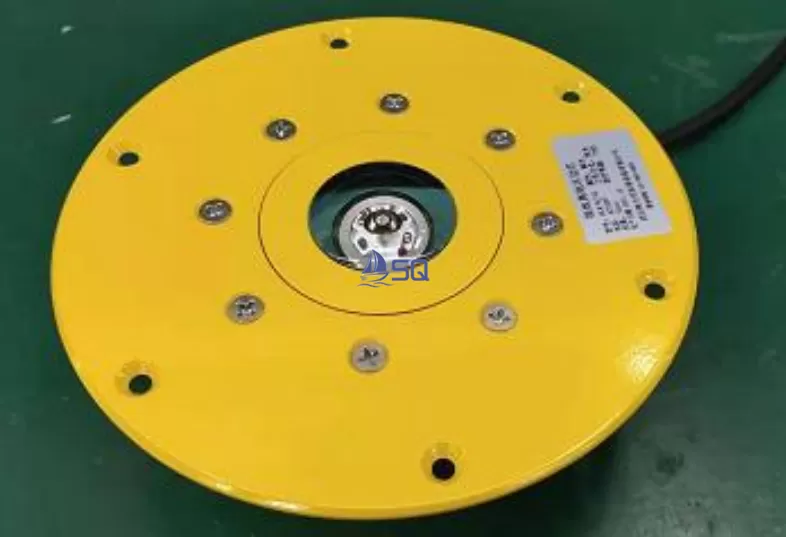

Helideck Inset Perimeter Light

Description

GS-HP/I Helideck inset perimeter light shell adopts stainless steel 304 and aluminum alloy with spray painted, it is good at

waterproof, heat dissipation and load-bearing.

The inner adopt LED light resource and cooperate with advanced optical glass design, emitting angle meet FAA standard.

The product is set in the area of helideck surface connection and lift off, it can send out light signal at night or during low visibility weather, which can indicate the edge location of helicopter ‘s ground connection and lift-off.

Function & Features

Adopt the superior thermal performance of stainless steel 304 with spray painted, provides

excellent cooling environment for LED light source.

With work stability, strong anti-interference ability and shock resistance.

Full sealed structure base, with superior waterproof performance.

With storm surge protection device.

Shielding sealed power supply, with excellent waterproof and anti-jamming.

Adopt independent encapsulation of high-power LED light source,which has the specific of high light brightness, and long service life.

Specification

Model	GS-HP/I
Power voltage	Optional voltage: AC85V~265V, DC48V/24V
Power Supply Frequency	50HZ～60HZ
Power Consumption	≤10W
Working mode	Steady Burning
Light Intensity	≥30CD
Optional Emitting Light Colors	Green/Blue/Yellow/White
Service Life of the Light Source	≥20years
Overall Size(mm)	210mm(D) x 78mm(H)
Installation size	185mm(D) M66pcs
IP Protection	IP68
Ambient Temperature	-55℃～85℃
Net Weight	3.5Kg
Humidity	＜95%
Altitude	＜4500M

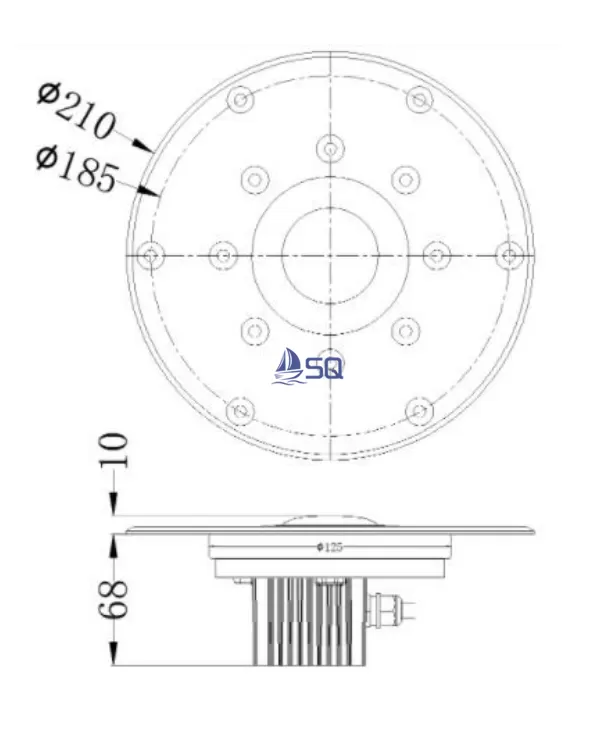

Dimension Drawing

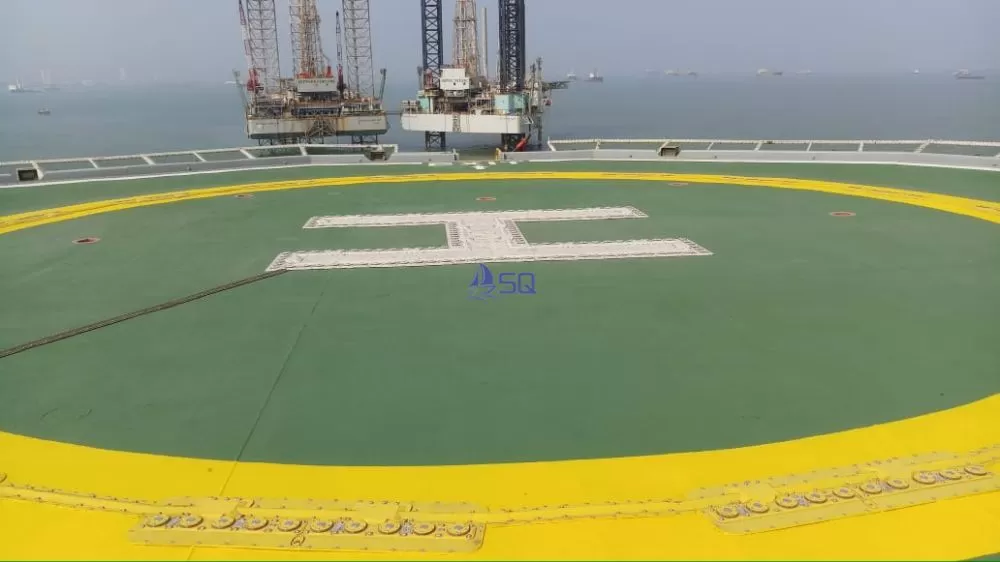

Application

Helideck Apron，Heliport， Airport

Usage Notice

Don't use any out of nominal voltage,or will destroy equipment.

Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.

After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.

Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.
