Model: GS-HP/CH

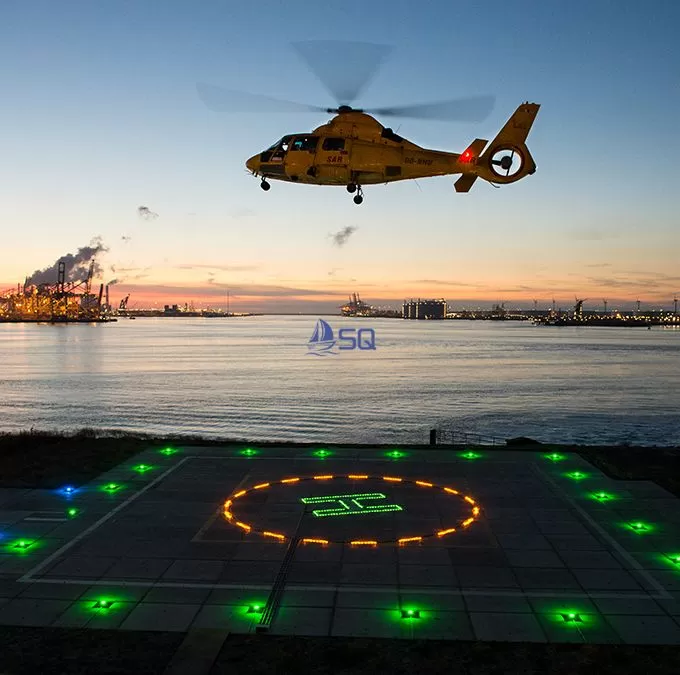

GS-HP/CH Helideck Circle & H lighting makesit possible for pilots to make much smoother andsafer landings on offshore installations than waspreviously possible at night, or during poor light oradverse weather conditions.lt eliminates thesometimesdisorientingdangerousand“black-hole”effect in the helideck that pilotspreviously often found so challenging.

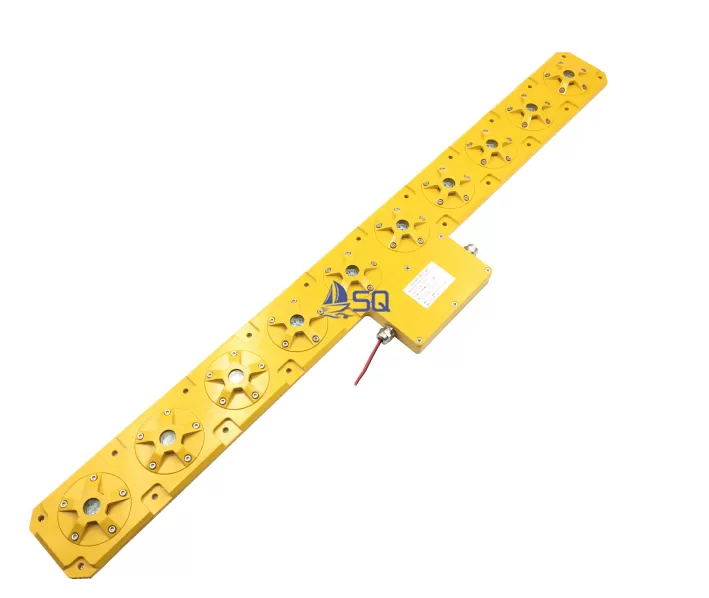

Circle & H lighting for helideck -touchdown positioning marketing -(TD/PM) and litheliport ldentification marking (H)is superimposed on the yellow painted marking. ltcomprises a concentric circle of at least 16 discrete lighting segments. TheElements have a width of 100mm.A single circle is positioned at the mean radius ofthe painted circle of the helideck.
The lighting segments provide coverage between 50% and 75% of thecircumference as stated in CAP437, and are equidistantly placed with the gapsbetween them not less than 0.5 m.
| Model | GS-HP/CH |
| Power voltage | From Controller |
| Light Color-Circle | Yellow |
| Light Color-H | Green |
| Working mode | Steady Burning |
| Light Source | LED |
| Light Intensity | As per CAP437 |
| Vertical Beam Profile | As per CAP437 |
| Colour chromaticity | As per CAP437 |
| Materials |
H-Unit: Aluminium,white grip coated C-Unit:Aluminium,yellow grip coated |
| Ingress Protectio | IP67 |
| Compliance With | CAP437 |
| Mounting | Riveted / Bolted / Glued |
| External earthing | Base plate |
| Tested Ambient Temp | -40° to +55° C |
| Consumption | 30 Watt |
| Life expectancy | 100.000+ hours |
Helideck，Heliport，Helipad
Don't use any out of nominal voltage,or will destroy equipment.
Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.
