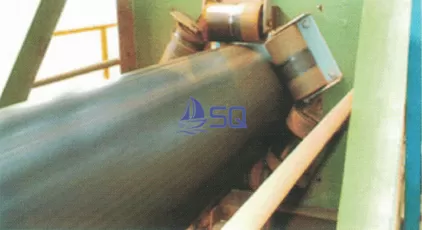

Pipe conveyor belt is new type of conveying belt with carcasses(EP fabric, steel cord and etc.)jas skeleton, high elastic, highanti-abrasive and high strength rubber as working surface. They are mainly used in conveying powdery and granularmaterials and etc. The rubber belt changes its form flat to U shape and finally to pipe shape. wrapping the materials andrealizing the process of enclosed conveying.
1、enclosed conveying of materials. protecting both the materialsand the environment.
2、The conveying angle can reach 30 degrees usually.
3、Conveying line can be arranged according to the curve space.
The pipe diameter of the belt is expressed in 'φ‘ millimetres (mm).
| Nominal Pipe Diameter/mm | φ200 | φ250 | φ300 | φ350 | φ400 | φ500 | φ600 | φ700 |
| Actual Outside Diameter/mm | 218 | 282 | 308 | 361 | 457 | 543 | 640 | 728 |
| Width/mm | 800 | 1000 | 1100 | 1300 | 1600 | 1850 | 2250 | 2450 |
The strength specifications of the belts are indicated by the letter ‘St’ and the nominal value of the longitudinal tensile strength (N/mm).
| Item | St630 | St800 | St1000 | St1250 | St1600 | St2000 | St2500 | St2800 | St3150 | St3500 | St4000 | St4500 | St5000 | St5400 |
|
Longitudinal tensile strength /(N/mm ) |
630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 2800 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 |
| Maximum nominal diameter of wire rope/mm | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 7.2 | 7.6 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 |
| Rope spacing/mm | 10+1.5 | 10+1.5 | 12+1.5 | 12+1.5 | 12+1.5 | 12+1.5 | 15+1.5 | 15+1.5 | 15+1.5 | 15+1.5 | 15+1.5 | 16+1.5 | 17+1.5 | 17+1.5 |
| Thickness of upper cover/mm | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 | 10 |
| Thickness of undercoat/mm | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 10 |
Width specifications for belts are given in millimetres (mm).
| WIDTH SPECIFICATIONS/mm | Number of ropes | |||||||||||||
| St630 | St800 | St1000 | St1250 | St1600 | St2000 | St2500 | St2800 | St3150 | St3500 | St4000 | St4500 | St5000 | St5400 | |
| 800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | 50 | ||||
| 1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 | 64 | 59 | 55 | 55 |
| 1100 | 105 | 105 | 87 | 87 | 87 | 87 | 69 | 69 | 69 | 69 | 69 | 65 | 61 | 61 |
| 1300 | 124 | 124 | 103 | 103 | 103 | 103 | 83 | 83 | 83 | 83 | 83 | 77 | 72 | 72 |
| 1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 101 | 101 | 101 | 96 | 90 | 90 |
| 1850 | 177 | 177 | 147 | 147 | 147 | 147 | 119 | 119 | 119 | 119 | 119 | 111 | 104 | 104 |
| 2250 | 181 | 181 | 181 | 181 | 145 | 145 | 145 | 145 | 145 | 137 | 125 | 125 | ||
| 2450 | 197 | 197 | 197 | 197 | 158 | 158 | 158 | 158 | 158 | 148 | 139 | 139 | ||
