STEEL CABLE PULLING CONVEYOR BELT

Product performance: flame retardant, cold-resistant, wear-resistant, small elongation, large capacity, stable operation, good adaptability to large materials.

Production process: the skeleton material is galvanised steel wire rope, cover rubber core rubber is natural rubber and other mixing, after vulcanisation process.

Applicable scenes: building materials, mining, chemical industry, light industry, machinery, electric power, food and other sectors.

Application

It's suitable for long distance handing of coal, mineral, etc, in mine and metallurgical industry.

Variety

1)Flame resistant type
2)General type

Feature

Pulled by steel cables, the belt only carries loads. So it has high capacity. It can support long distance conveyfor both people and goods.
The flame resistant type is self-extinguishing which can prevent fire accident and fire spread.

Belt structure

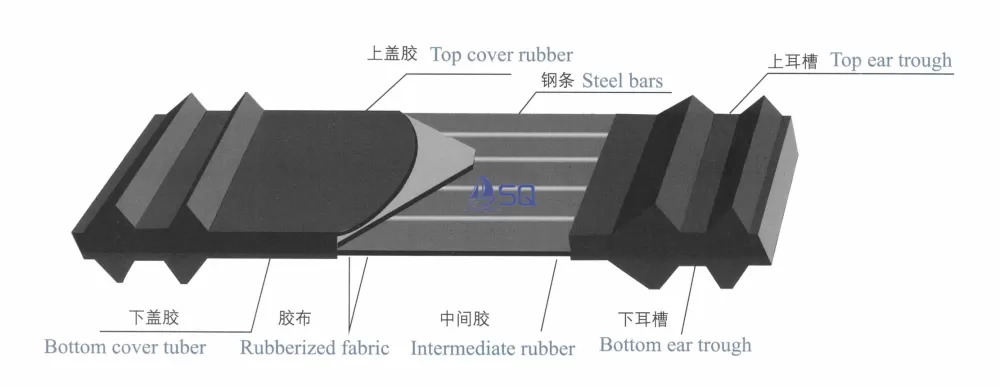

The belt is consist of lateral steel bars spring, intermediate rubber, top cover rubber, bottom coverrubber, ear rubber and edge rubber, it's vulcanized by special molding plate.

Specification series

Ear type	Belt type	Steel bar Size (mm)	Steel bar center distance (mm)	Steel cord diameter (mm)	Ear trough center distance (mm)	Fabric category	Belt thickness (mm)
ear troughs symmetrical	SL/S864x2P(5.0+5+2.5)	5x5x840	40	28.0	800	NN100	15.0
ear troughs symmetrical	SL/S1070x2P(3.5+5+2.0)	5x5x1034	40	40.0	1000	NN100	13.0
ear troughs symmetrical	SL/S1070x2P(3+6+1.5)	6x6x1034	40	40.0	1000	NN100	13.0
ear troughs symmetrical	SL/S1070x2P(4.5+5+2.5)	5x5x1034	40	40.0	1000	NN100	14.0
ear troughs symmetrical	SL/S1070x2P(4.0+6+2.0)	6x6x1034	40	40.0	1000	NN100	14.0
ear troughs asymmetrical	SL/S1126x2P(4.0+5+2.5)	5x5x1080	40	40.0	1000 800	NN100	13.5
ear troughs asymmetrical	SL/S1126x2P(4.0+6+1.5)	6x6x1080	40	40.0	1000 800	NN100	13.5
ear troughs asymmetrical	SL/S 1280x2P(4.0+6+3.5)	6x6x1240	50	40.5	1200 1000	NN100	15.5
ear troughs asymmetrical	SL/S 1280x2P(4.0+7+2.5)	6x6x1240	50	40.5	1200 1000	NN100	15.5
Note: 1, according to user requirements, can adopt DIN22129, BS3289 and AS1333 standard production 2、If there are other special requirements can be negotiated separately.

The specification of flame resistant type meets MT669-1997

Anti-static property	Surface electrical resistance≤3 x 10^8Ω
Spirit burner test	12 pieces of full thickness,12 pieces with covers removed and 12 pieces of ears. Average time for all flame or glow to disappear of full thickness and ear test pieces ≤ 3S. Individualtime for flame or glow to disappear on each of the test pieces ≤ 10S. Average self-extinguishing time of carcass ≤5S,Individual time ≤ 15S.
Gallery propane burner test	The length that remains undamaged over its full width should no less than 250 mm

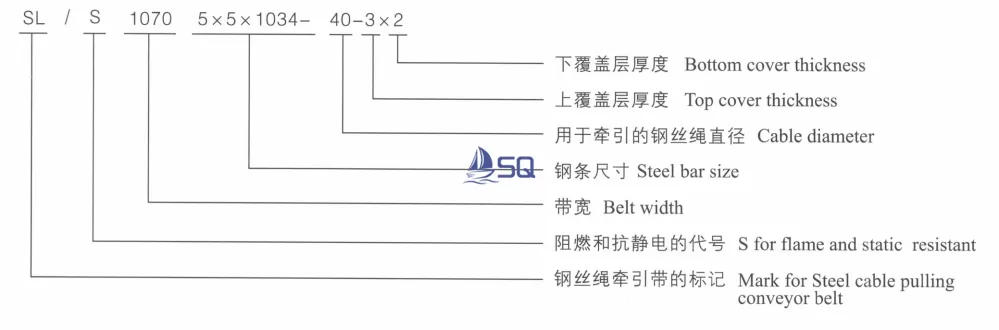

Belt key to symbols
