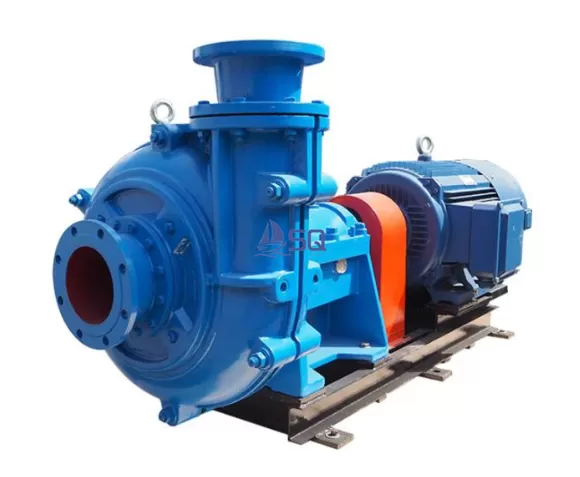

Sand Dredge pump

Core Structural & Material Features

1. Key Components
   • Wet-end Parts: Impeller, pump casing, liner, and suction/discharge pipes are the core components in contact with abrasive media. These parts are designed with thickened structures and optimized flow channels to reduce friction and prevent clogging.
   • Drive System: Can be powered by electric motors, diesel engines, or hydraulic systems. Diesel-driven models are preferred for mobile dredging operations (e.g., river sand extraction), while electric models are suitable for fixed workstations (e.g., tailings ponds).
   • Sealing System: Adopts mechanical seals or packing seals with anti-abrasion design to prevent slurry leakage and adapt to harsh working conditions.
2. Wear-resistant Materials

   Material Type	Core Advantages	Applicable Scenarios
   High-chromium cast iron	Excellent wear resistance, high hardness, and impact resistance	Transporting high-concentration sand slurry and gravel mixtures
   Wear-resistant rubber	Good flexibility, anti-clogging, and low noise	Handling fine sand slurry and corrosive media
   Ceramic lining	Ultra-high wear resistance, corrosion resistance	Extreme working conditions with high abrasive content

Main Types & Application Scenarios

1. Classification by Installation Method
   • Submersible Sand Dredge Pump: Can be fully submerged in water for operations such as river/lake dredging, port silt cleaning, and underwater sand extraction. It eliminates the need for priming, features compact structure, and is easy to install.
   • Horizontal Sand Dredge Pump: Installed on shore or fixed platforms, it is suitable for long-distance transportation of sand and tailings, often used in sand quarries and mineral processing plants.
   • Vertical Sand Dredge Pump: Semi-submerged installation, ideal for working in deep water areas, such as coastal reclamation projects and offshore dredging.
2. Typical Application Fields
   • Dredging Engineering: River channel desilting, port basin deepening, and coastal beach maintenance to ensure smooth waterway navigation.
   • Sand Extraction Industry: Extracting river sand, sea sand, and construction sand for building material production.
   • Mining & Metallurgy: Transporting mineral tailings, slag slurry, and ore pulp in mines and smelters.
   • Land Reclamation: Pumping sand and mud for coastal or riverbank land reclamation projects.

Core Performance Advantages

1. Strong Abrasion Resistance: Special materials for wet-end parts extend service life by 3–5 times compared to ordinary centrifugal pumps, reducing maintenance frequency.
2. High Flow & Efficiency: Optimized impeller design ensures large displacement (up to thousands of cubic meters per hour) and stable operation, improving construction efficiency.
3. Anti-clogging Design: Wide flow channels and reasonable impeller clearance can handle media with high solid content (up to 60%) without clogging.
4. Flexible Adaptability: Supports multiple power sources and installation methods, adapting to both onshore and underwater working environments.

Usage Precautions

1. Select the appropriate pump model according to the solid content, particle size, and transportation distance of the media.
2. Ensure sufficient inlet pressure during operation to avoid cavitation, which may damage the impeller.
3. Regularly check the wear degree of wet-end parts, and replace worn components in a timely manner to avoid affecting pump performance.
4. For submersible models, ensure the sealing performance is intact to prevent water from entering the motor and causing short circuits.
