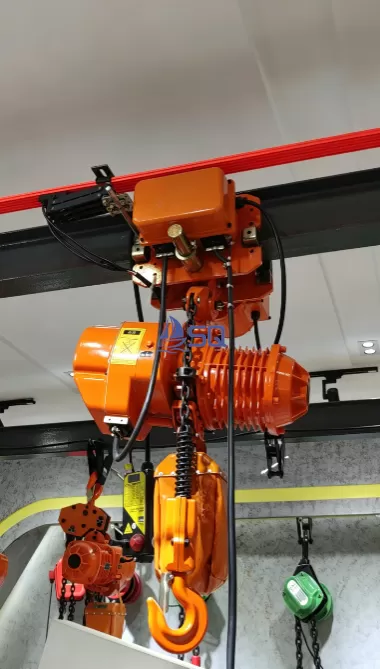

The trolley-mounted electric chain hoist is a compact, lightweight lifting solution combining lifting and traversing capabilities. Equipped with an electric or manual trolley mechanism, it enables horizontal or multi-directional movement of loads along I-beam rails, integrating the stability of stationary hoists with the flexibility of mobile handling systems. Constructed with a high-strength alloy body, this hoist incorporates specialized lifting chains and a motorized hoisting system to achieve precise, multi-tonnage lifting operations. Ideal for applications requiring versatile maneuverability, it is widely used in workshop assembly lines, logistics warehouses, port terminals, and other environments demanding multi-directional material handling.
|
Model |
Capacity (Ton) |
Lifting speed (m/min) |
Motor Power (Kw) |
I Beam (mm) |
Running speed (m/min) |
Motor speed (m/min) |
Insulation class |
Power supply |
Control voltage |
No.of load chain |
Spec.of load chain |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5-01 | 0.5 | 7.2 | 0.8 | 68-136 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 1 | Φ6.3 |
| 01-01 | 1 | 6.6 | 1.5 | 78-154 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 1 | Φ6.3 |
| 1.5-01 | 1.5 | 8.8 | 3.0 | 80-176 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 1 | Φ7.1 |
| 02-01 | 2 | 6.6 | 3.0 | 80-176 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 1 | Φ10.0 |
| 02-02 | 2 | 3.3 | 1.5 | 80-176 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 2 | Φ10.0 |
| 2.5-01 | 2.5 | 5.4 | 3.0 | 80-176 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 1 | Φ7.1 |
| 03-01 | 3 | 5.4 | 3.0 | 100-178 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 1 | Φ11.2 |
| 03-02 | 3 | 4.4 | 3.0 | 100-178 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 2 | Φ11.2 |
| 05-02 | 5 | 2.7 | 3.0 | 110-180 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 2 | Φ10.0 |
| 7.5-02 | 7.5 | 1.8 | 3.0 | 140-180 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 3 | Φ11.2 |
| 10-04 | 10 | 2.7 | 3.0×2 | 112-220 | 11&21 | 1440 | F | 220V-690V | 24V/36V/48V | 4 | Φ11.2 |
| Model | Capacity (Ton) | Lifting speed (m/min) | Motor Power (Kw) | I Beam (mm) | Running speed (m/min) | Motor speed (m/min) | Insulation class | Power supply | Control voltage | No.of load chain | Spec.of load chain |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5-01LD | 0.5 | 7.2/2.4 | 0.8 | 68-136 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 1 | Φ6.3 |
| 01-01LD | 1 | 6.9/2.3 | 1.8 | 78-154 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 1 | Φ6.3 |
| 1.5-01LD | 1.5 | 8.8/3.0 | 3.0 | 80-176 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 1 | Φ7.1 |
| 02-01LD | 2 | 6.6/2.3 | 3.0 | 80-176 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 1 | Φ10.0 |
| 02-02LD | 2 | 3.3/1.1 | 1.8 | 80-176 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 2 | Φ10.0 |
| 2.5-01LD | 2.5 | 5.4/1.8 | 3.0 | 80-176 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 1 | Φ7.1 |
| 03-01LD | 3 | 5.4/1.8 | 3.0 | 100-178 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 1 | Φ11.2 |
| 03-02LD | 3 | 4.4/1.5 | 3.0 | 100-178 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 2 | Φ11.2 |
| 05-02LD | 5 | 2.7/0.9 | 3.0 | 110-180 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 2 | Φ10.0 |
| 7.5-02LD | 7.5 | 1.8/0.6 | 3.0 | 140-180 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 3 | Φ11.2 |
| 10-04LD | 10 | 2.7/0.9 | 3.0×2 | 112-220 | 11&21 | 2880/960 | F | 220V-690V | 24V/36V/48V | 4 | Φ11.2 |
Welcome to consult China Running type electric chain hoist with Certificate suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
