Marine Cable Winch

Category:Ship Equipment
Certificate:ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:Get Latest Price Now
Quality Guarantee:12 Months unless specified otherwise
Place of Origin:China

Request a Quote

Get a factory quote now, we can supply according to your requirement.

China Marine Cable Winch Introduction:

Specifications

Brand Name

HS Code

Unit

SET(Sets)

Customed Made

MOQ

Delivery Period

30 days

Description

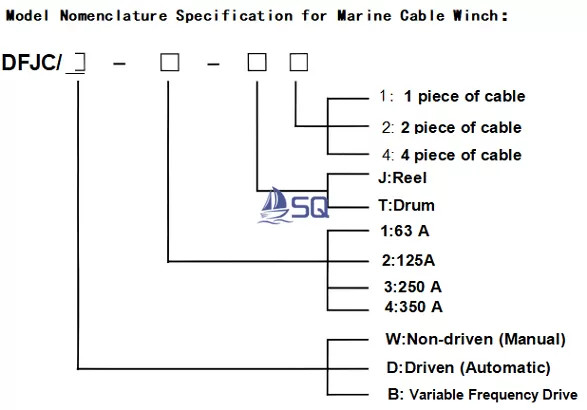

NO.	LOW-VOLTAGE CABLE WINCH (MODEL) FOR CABLE MANAGEMENT SYSTEM	Voltage Class (V)	Rated Current (A)	Reel Dimension(mm)	Cable number (rope)	Cable length (m/rope)	Power Type

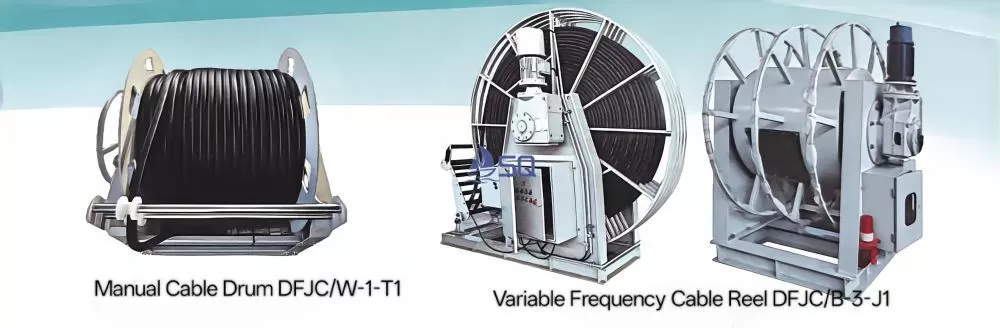

1	DFJC/W-1-T1	≤690	63A	φ500×φ850×620	Drum-type (1 cable)	100	Manual
2	DFJC/W-2-T1	≤690	125A	φ600×φ1000×620	Drum-type (1 cable)	100	Manual
3	DFJC/D-3-T1	≤690	250A		Drum-type (1 cable)	100	Automatic
4	DFJC/D-3-T2	≤690	500A		Drum-type (2 cable)	200	Automatic
5	DFJC/B-3-J1	≤690	250A		Reel-type (1 cable)	100	Variable Frequency Drive
6	DFJC/B-3-J2	≤690	500A		Drum-type (2 cable)	200	Variable Frequency Drive

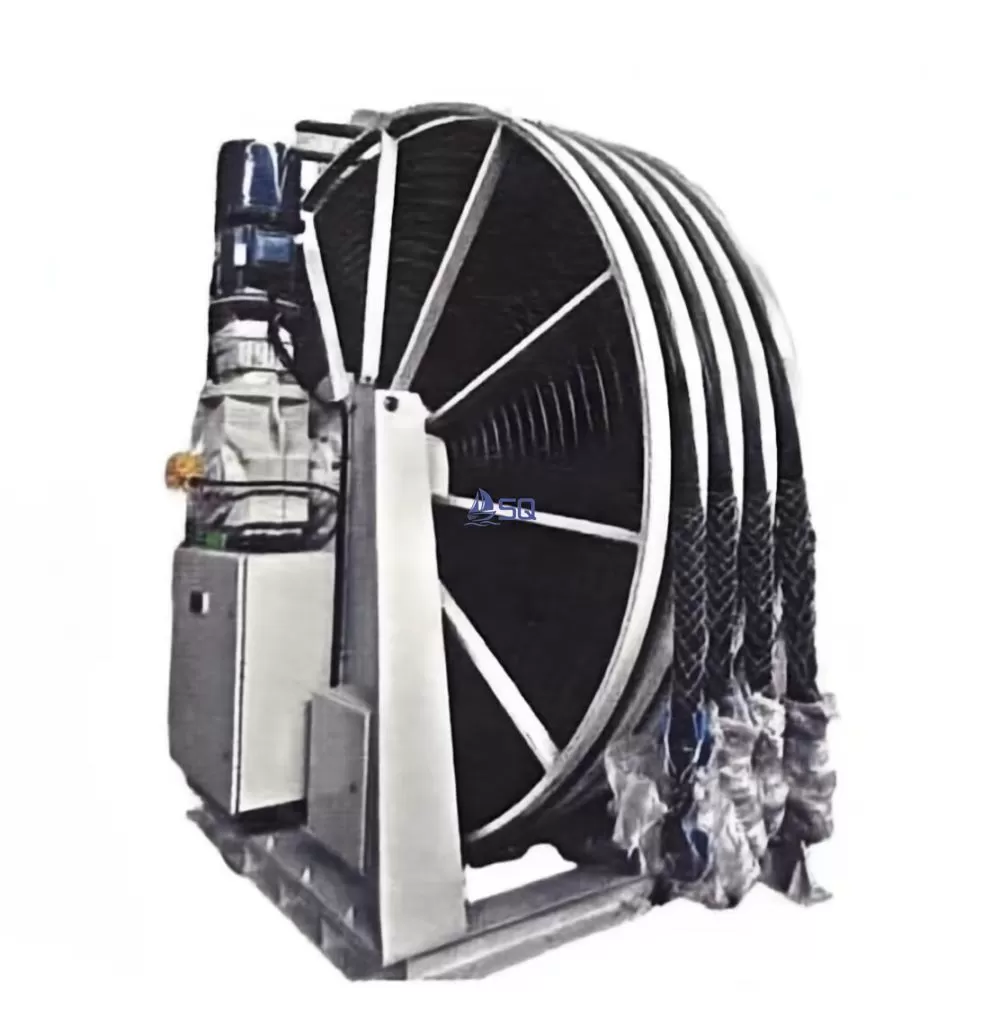

7	DFJC/B-3-J4	≤690	1000A		Drum-type (4 cable)	400	Variable Frequency Drive

I. Main Operating Environment

Ambient Temperature: -25°C to 70°C
Ambient Humidity: 90%
Voltage Fluctuation Range: +6% to -10%; Frequency Fluctuation Range: 5%
Vibration Frequency Range: 10Hz to 60Hz; Vibration Amplitude: 0.475mm to 0.525mm
Maximum Inclination: 22.5° in each direction

II. Main Functions

Electrical Control Type: The DFJC series marine cable winch adjusts cable winding and unwinding via manual operation or forward/reverse rotation of the motor.
Main Components of the Internal System Electric Control Box: Circuit breakers, AC contactors, thermal relays, fuses, changeover switches, terminal blocks, etc.
Control Function: Adjust the rotation direction of the cable reel via the forward/reverse changeover switch (SA), thereby controlling cable winding and unwinding.
