FOG INS

FOG INS Bp-II

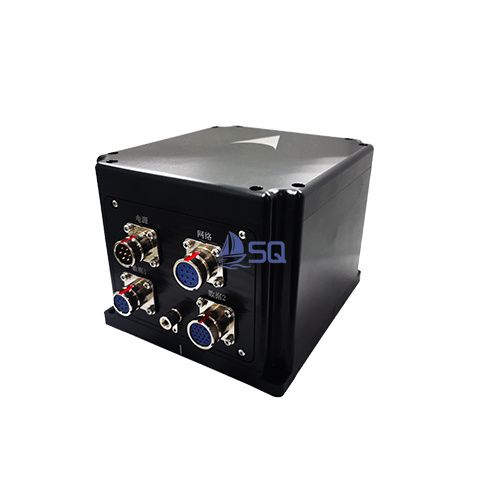

BP- II(SAM002) is equipped with medium and high precision fiber optic gyroscope, quartz accelerom eter and multi-mode satellite navigation receiver. GNSS dual antenna real-time positioning and heading tech-nology, autonomous seeking north technology, inertial navi-gation technology, integrated navigation technology, can output high-precision position,speed, heading, attitude, angular velocity, acceleration, time and other information.

●Product introduction

BP- II(SAM002) is equipped with medium and high precision fiber optic gyroscope, quartz accelerom eter and multi-mode satellite navigation receiver. GNSS dual antenna real-time positioning and heading tech-nology, autonomous seeking north technology, inertial navi-gation technology, integrated navigation technology, can output high-precision position,speed, heading, attitude, angular velocity, acceleration, time and other information.

●Product features

Quickly north seeking
Precise time synchronization
Low latency

●Application field

Autonomous navigation of various carriers; multi-beam hydrological measurement applications, ocean mapping.

●Parameters

System accuracy	Heading accuracy	≤0.1°secφ (RMS,pure lNS)
		≤0.05°secφ (RMS)GPS/GNSS
	AttitudeAttitude accuracy	≤0.01°(RMS,Dynamic)
Interface features	Heave	≤5cm or 5%H(Whichever is bigger)
	Output interface	RS-232/ RS-422 serial output(Configurable)
	The data of frequency	Output frequency200Hz (Configurable)
	The output protocol	NMEA0183、Binary,ASCll (Custom)
	Baud rate	480Obauds~921600bauds
	The input interface	Support DVL、GPS、GNS
Physical features	lnput voltage	(DC)12~32V、24V±10% (Rated)
	Dimensions	18omm×160mm×135mm (X，Y，Z)
	Power consumption	≤20W
	Weight	≤5kg
Time	Setting time	≤10min
Environment	Operation  temperature	-20℃~+60℃
	Storage  temperature	-40℃~+70℃
