| Performance Voltage | DC 12V/24V |
| Rated line pull(single line) | 17000LB(7711KG) |
| Motor | 6HP(4.5KW)Series Wound |
| Gear train | 3 Stage Planetary |
| Gear reduction ratio | 343:1 |
| Free Spooling Clutch | Up and down |
| Wire Rope | Ø12mm ×24m |
| Drum Diameter/Length | Ø89mm x224mm |
| Braking action | Automatic in the drum |
| Fairlead | 4-way Roller |
| Duty Cycle | Intermittent |

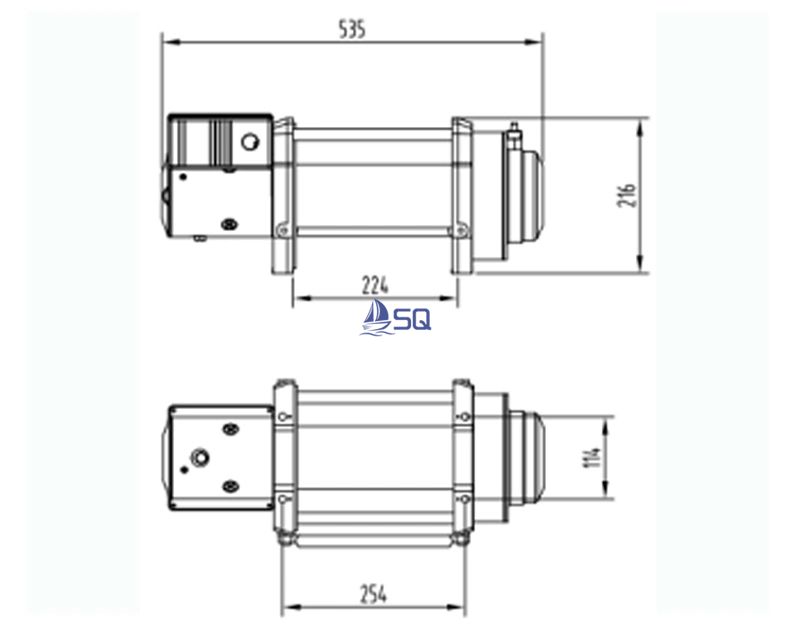

| Mounting bolt pattern | 114mm*254mm |
| Remote Control Cable | 3m |
| Wireless Remote Control | Optional |
| Dimensions | 535mmX215mmX216mm |
| G.W/N.W | 52/50kg(1PCS) |
| Shipping Carton Size | 60*40*29CM(1CTN) |
| Line Pull (lbs./kg) | Line Speed FPM(m/min) | Motor (Amps) |
| 0 | 25.6ft(7.8m) | 45 |
| 3000(1361) | 11.2ft(3.4m) | 130 |
| 6000(2722) | 7.9ft(2.4m) | 220 |
| 9000(4082) | 6.6ft(2.0m) | 295 |
| 12000(5443) | 5.4ft(1.7m) | 380 |
| 17000(7650) | 4.4(1.4m) | 450 |
| Layer | Rated Line Pull(lbs./kgs) | Tatal Rope On Drum(ft/m) |
| 1 | 17000(7650) | 21.6(6.4) |
| 2 | 12500(5670) | 45.2(13.8) |
| 3 | 10600(4808) | 74.8(22.8) |
| 4 | 9400(4263) | 79(24) |
Welcome to consult China Electric winch suppliers. We have more than 10 years of foreign trade supply experience and have provided high-quality shipping equipment to dozens of countries around the world. We provide you with high-quality services and preferential prices customized by manufacturers. You can get a free quote online or leave a message below and we will reply to you within 24 hours.
