1、Machine model and main technical parameters：

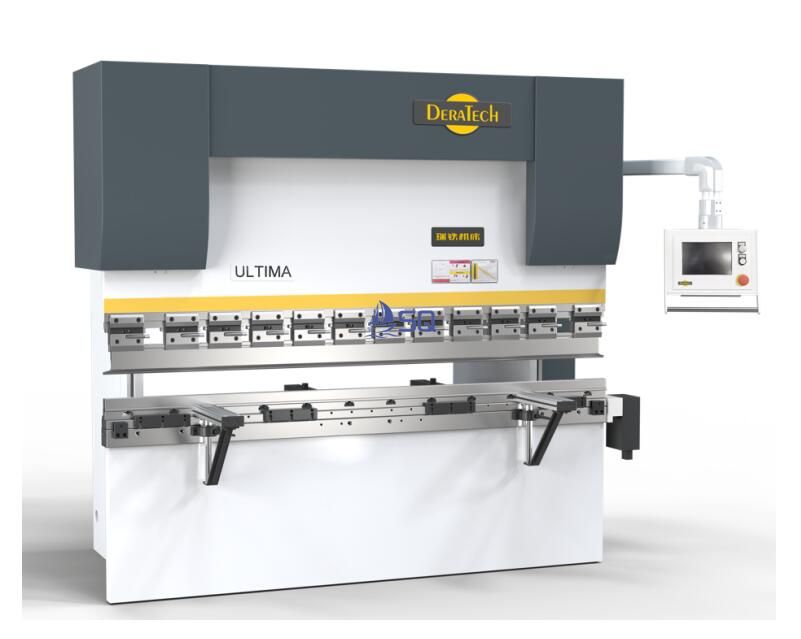

1.1Machine model：CBB-60/2050D Y1, Y2,X,R (4axes)
StandardCybelec CT8 controlsystem and servo hybrid drive system
1.2Main technical parameters
|
CBB |
60/2050D |
|
|
Force (kN) |
600 |
|
|
Max. bending Length (mm) |
2050 |
|
|
Distance between uprights (mm) |
1700 |
|
|
Opening height (mm) |
575 |
|
|
Throat depth (mm) |
415 |
|
|
Cylinder stroke (mm) |
310 |
|
|
Oil (L) |
2×70 |
|
|
Main power (kw) |
2×4.4 |
|
|
Upper beam Speed |
Approaching speed |
300 |
|
Working speed |
0-20 |
|
|
Returning speed |
250 |
|
|
Back gauge speed X axis |
Stroke (mm) |
450 |
|
Max. Speed (mm/s) |
450 |
|
|
Back gauge speed R axis |
Stroke (mm) |
200 |
|
Max. Speed (mm/s) |
75 |
|
|
Machine Dimensions (mm) |
Length |
2680 |
|
Width |
1510 |
|
|
Height |
2855 |
|
|
Weight(kg) |
5600 |
|
1.3 Main precision level:
Upper beam positioning accuracy Y1,Y2 ±0.02 mm
Upper beam repeated positioning accuracy Y1,Y2 ±0.01 mm
Back gauge X repeated positioning accuracy ≤±0.01mm
Back gauge R repeated positioning accuracy ≤±0.02mm
Work piece angle tolerances ±20'/Whole length
Work piece straightness tolerances 0.20mm/1000mm
Power request: three phase four wire system,380V,50Hz
Installation place: clean,less dust
Highest temperature: 40ºC
Lowest temperature: -5ºC
Relative humidity (RH):55—85%
Altitude: less than 1000M
